The end and mid clamps are used to secure solar modules of different varieties and types with different thickness on solar racking.

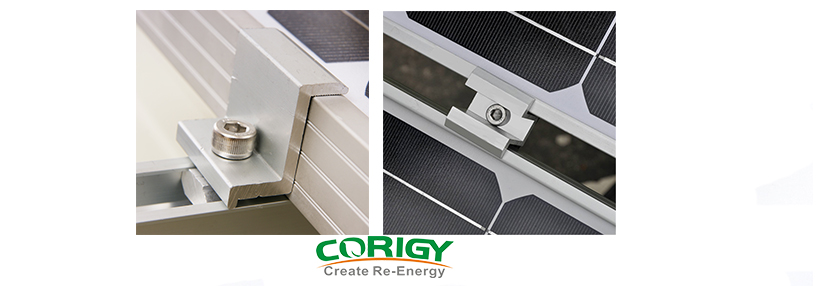

The mid clamp is for connecting two panels by tightening the hex screw.
The end clamp is for secure the last solar module at the end by tightening the hex screw.
How to choose suitable solar end/mid clamp
|
Thickness |
30mm/35mm/40mm/45mm/customized |
|
Surface Treatment |
Anodizing/Without anodizing/Black anodizing |
|
Solar Panel Type |
Normal Solar Module/Thin film Solar Module |
|
Adjustable |
Yes/No |
|
Nuts |
Aluminum/Carbon Steel |
Different types of solar fixing end/mid clamp on Corigy Solar:

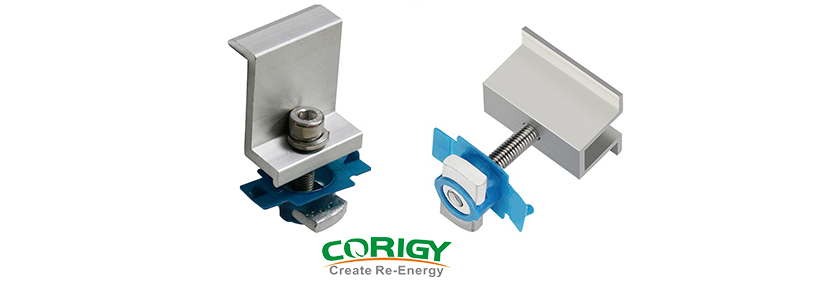

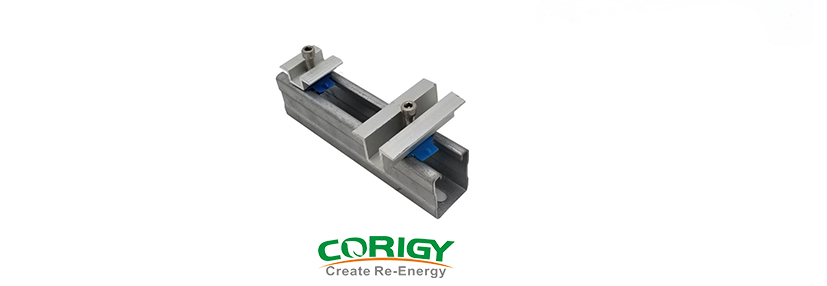

This one is the most commonly used type.

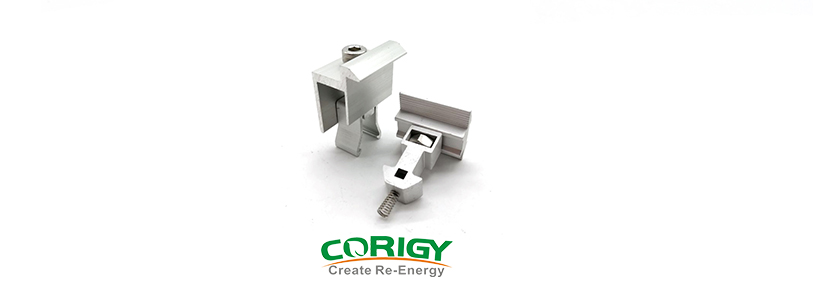

This solar clamp is mainly applied for small residential project which may use solar modules at different thickness, and it's good for stocking to execute small residential project immediately.

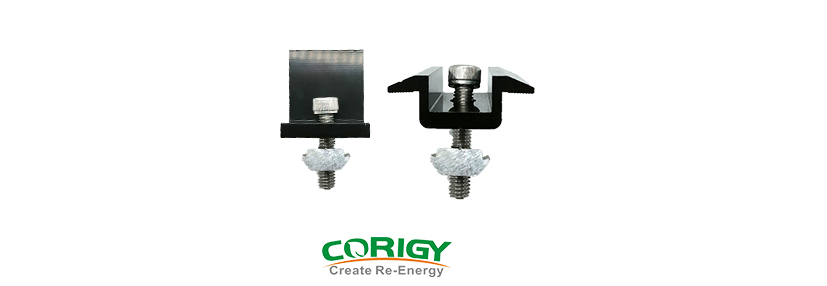

And this is the black anodized version customized for customer to match the module color.

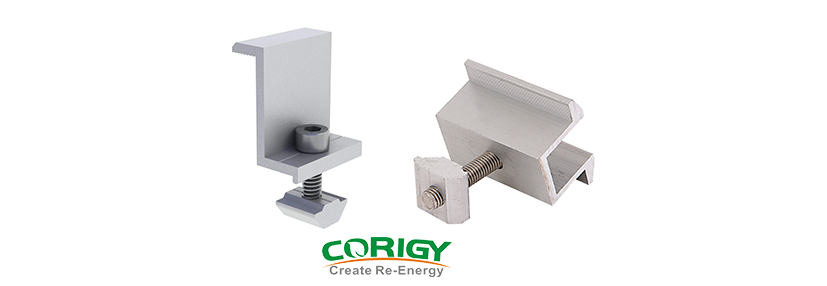

This type have a plastic wing and carbon steel nut, which is used to fix on solar carbon steel racking.

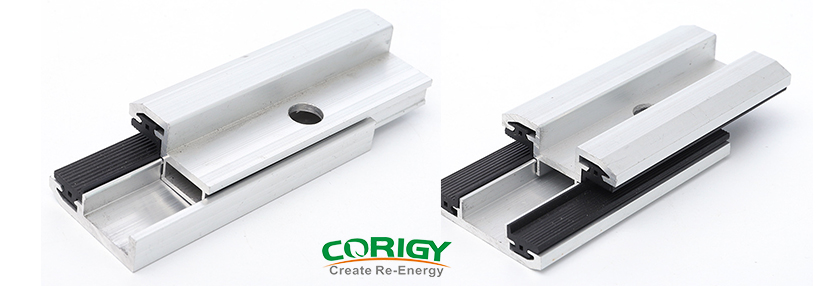

This one is used on fixing thin film solar panel modules.
Solar mounting accessories such as end/mid clamp, cable clip, grounding items， etc.
