What need to be prepared for solar panel mounting systems before typhoon landed

November 09 , 2021

1. Before the typhoon landed , conduct a comprehensive and detailed inspection of the installation of the solar mounting brackets in time, including whether the screws and fasteners are fastened firmly. And check whether the mid clamp and end clamp of the solar panel brackets are loose and fasten them in time.

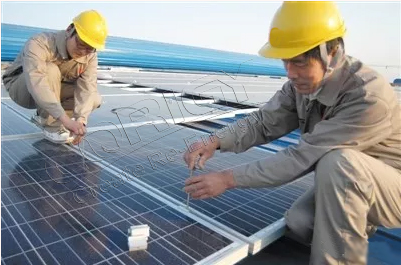

solar mounting brackets

2. For rooftop solar mounting structure that use hooks or clamps, check whether the hooks and clamps are firmly installed. For flat roof solar racking, the tandem modules on the windward side can be bundled and fixed with double strands of 2 square millimeters of iron wire. For power stations with smaller fixed piers, sandbags can be used to increase the power station counterweight.

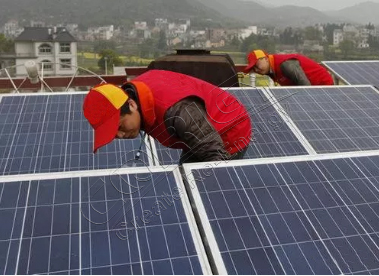

rooftop solar mounting structure

3. For solar ground mount systems without protective brackets, install and tighten wind-proof rods to prevent the photovoltaic brackets from twisting with the wind. Solar ground mount structures should tamping the solar ground screws on both sides of the array.

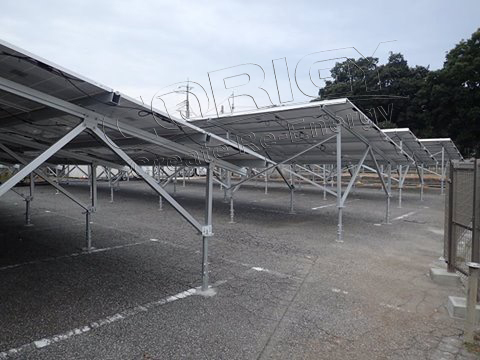

solar ground mount systems

4. Check the insulation and tightness of the electrical equipment of the photovoltaic power station, and check whether the AC and DC terminals are properly connected. In the event of low terrain and high water level, the grid-connected inverter should be removed from the site or placed on a high ground.
