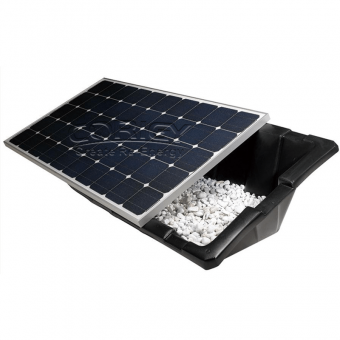

Corigy Residential Solar Panel Flat Roof Mounting Bracket Ballast Tray Design

Solar Panel Ballast Mounting System Tray Design

Install Site	Flat Roof or Lower Profile Roof
Tilt Angle	10~60 Degree
Building Height	20 m
Max Wind Speed	<60m/s
Snow Load	1.4KN/m2
Standard	AS/NZS 1170 and Other International Standard
Material	High Class Aluminum Alloy Al6005-T5 & Stainless Steel 304
Anticorrosive	Anodized Aluminum & Stainless Steel
Color	Natural and Customized
Warranty	Ten Year Warranty and Twenty Year's Service Life



What angle should solar panels be mounted on a flat roof?

When installing solar panels on a flat roof, the optimal tilt angle depends on several factors, including your location's latitude, the desired energy output, and the specific conditions of your roof. However, a commonly recommended tilt angle for solar panels on a flat roof is around 10 to 15 degrees. This tilt helps maximize solar energy production by allowing rainwater to drain off the panels and optimizing the panels' exposure to the sun.
If you want to maximize the energy production of your solar panels, you can adjust the tilt angle based on your location's latitude. For example, at the equator, the optimal tilt angle is often around 0 degrees, while in northern latitudes, a steeper tilt angle may be more beneficial.
It's also worth considering any shading issues and the aesthetics of your installation. A lower tilt angle may be preferred if there are shading concerns, while a steeper tilt angle can improve the appearance of the solar array.



Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.
All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.
