Brand:
CORIGY SOLARItem NO.:
SMC138Product Origin:
CHINAColor:
SilverShipping Port:
XIAMENLead Time：
Depends on project time or receipt time

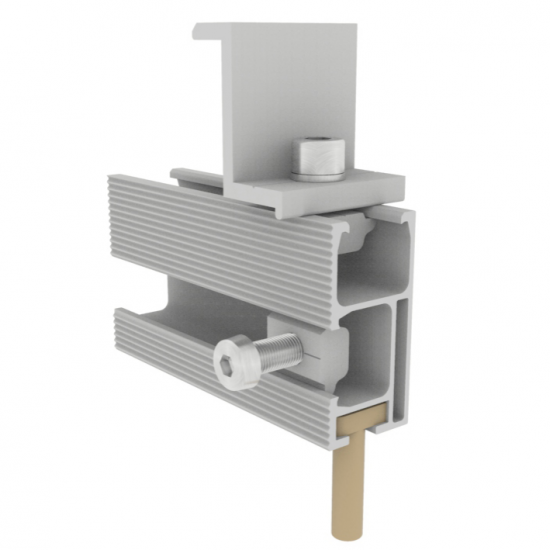

Aluminum Solar Mounting Rails
|
Product Name |
Aluminum Solar Mounting Rail |
|
Mount Location |
Ground, Rooftop, Balcony |
|
Height |
50mm |
|
Width |
26mm |
|
Length |
2100mm/Customized |
|
Side channel |
Nut |
|
Design Standard |
AS/NZS 1170 , DIN 1055 ,JIS C8955 2017 |
|
Rack Material |
Al6005-T5 (Surface Anodic Oxidation） |
|
Weight |
0.73kg/m |
|
Warranty Period |
10 years |
|
Service Life |
25 years |
|
Loading Port |
Xiamen Port,China |
Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In
terms of selection, Corigy is based on the principle of highest
quality. The bracket uses high-quality main materials high-grade anode
aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent
anti-corrosive rust and anti-rust performance ensures its 30-year
service life. At the same time, the characteristics of aluminum
lightweight reduces the weight of the roof and make it safe and
reliable. The maximum wind speed can carry 60m/s, and the snow load
capacity is 1.4kn/㎡.
All
bracket solutions of Corigy are calculated based on the live conditions
environment. Corigy's advanced technical team conducted a force
analysis of the structure of the building, combined with the layout of
the bracket and photovoltaic components to verify the various feasible
bracket installation solutions to determine the most efficient,
convenient, safe and reliable solution.
Solar mounting accessories such as end/mid clamp, cable clip, grounding items， etc.
Flat roof solar mounting systems offer robust support and easy installation for solar panels on flat roofs. These systems ensure maximum energy capture, durability, and cost-efficiency, making them ideal for residential and commercial properties. Corigy flat roof solar panel mounting system, such as ballast mount, east-west ballast mount, etc. Contact us to learn more!
Install solar panel on the metal roof by standing seam, klip-lok, L foot or other clamps.
Corigy Solar Ground Mounting Racking System Structure is widely applied for landfll, open space or sloping terrain, etc, Diferent kinds of material can be offered for any needs, such as galvanized steel, anodized aluminum and ZAM materials.
CORIGY SOLAR, 11 years experience of research, manufacture and sale of solar energy system. We are always trying to provide the best support for you, including fast response, cost, QC, design, distributor support.
