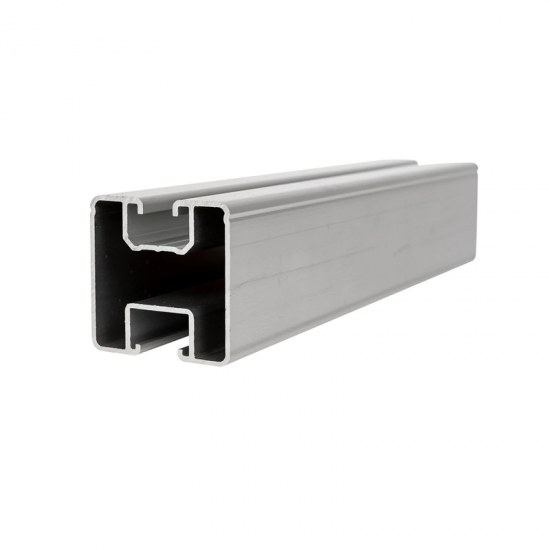

Corigy Aluminum Bracket Roof Mounting Rails

Aluminum Solar Mounting Rails

Product Description Features: *Easy installation, a lot of installation time and cost. *Have Strong toughness and high corrosion resistance. *Can Withstand extreme weather. *Wide applicability, can be installed on various types of roofs. *Easy to Install: these adjustable end clamps size can be adjusted according to the different solar panel, you only need to install it in the target position, saving your time and energy, which is convenient for you to install. Details: Material:Aluminum alloy Color : black+silver

Product Name	Aluminum Solar Mounting Rail
Mount Location	Ground, Rooftop, Balcony
Height	40mm
Width	40mm
Length	2100mm/Customized
Bottom channel	T Shape Screw
Design Standard	AS/NZS 1170 , DIN 1055 ,JIS C8955 2017
Rack Material	Al6005-T5 (Surface Anodic Oxidation）
Weight	0.73kg/m
Warranty Period	10 years
Service Life	25 years
Loading Port	Xiamen Port,China

Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.

In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.

All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.
