Corigy Solar Balcony Structure System Elevation Photovoltaic Module Solar Bracket Balcony Hook

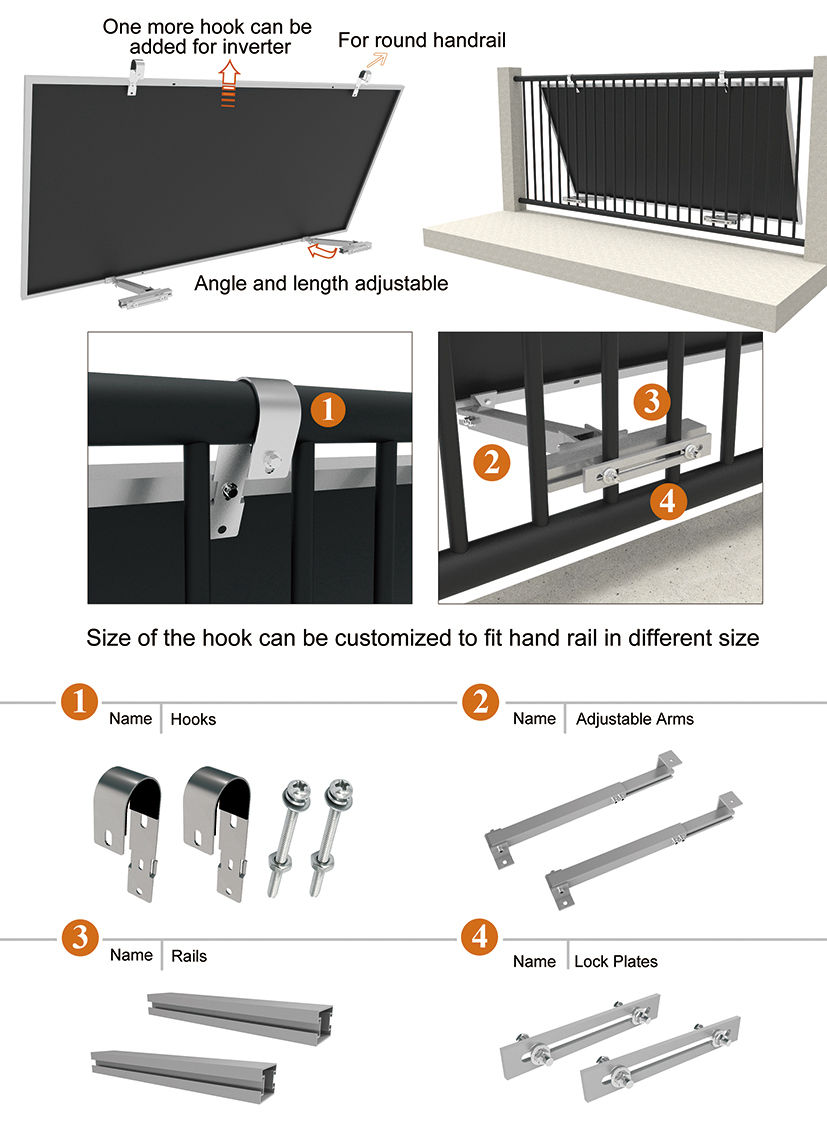

Balcony Solar System Mounting Bracket

Balcony solar module brackets are designed to blend seamlessly with the overall balcony aesthetic. They often have a sleek and low-profile design that minimizes visual impact while maximizing solar panel efficiency.

Product Name	Balcony Solar System Mounting Hook
Mount Location	Balcony
Mount Angle	Vertical on the floor
Snow Load	1.6KN/m2
Applicable Solar Panels	Framed Panels
Solar Panel Layout	Horizontal Panel Installation
Design Standard	AS/NZS 1170 , DIN 1055 ,JIS C8955 2017
Rack Material	Al6005-T5 (Surface Anodic Oxidation）
Fastener Material	SUS304/SUS410
Warranty Period	10 years
Service Life	25 years
Loading Port	Xiamen Port,China



How to install solar panel on apartment balcony?

1.Determine feasibility: Evaluate the exposure of your balcony to sunlight. Solar panels require direct sunlight to generate electricity efficiently, so make sure your balcony receives sufficient sunlight throughout the day. Consider obstructions like nearby buildings or shaded areas that may reduce sunlight exposure.

2. Consult an expert: It is recommended to seek professional advice from a solar installer or engineer, who can evaluate the feasibility of installing solar panels on your specific balcony. They can perform an on-site visit and conduct a shading analysis to determine the potential energy production.

3.Assess structural support: Ensure that your balcony is structurally capable of supporting the weight of solar panels and any additional equipment such as mounting brackets. Consult with a structural engineer or professional installer if you're unsure about the load-bearing capacity.



This apartment balcony solar mount can be packed in a standard box, suitable for retailers or eBay, Amazon sellers.

Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.
All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.
