Corigy Solar Metal Roof Solar Mounting System Supplier Klip Lok Clamp

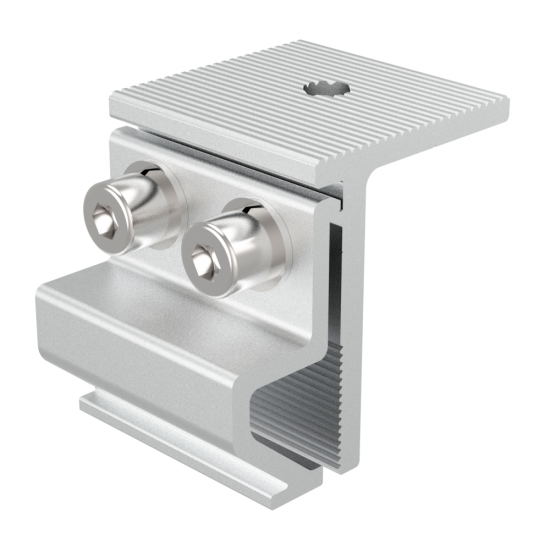

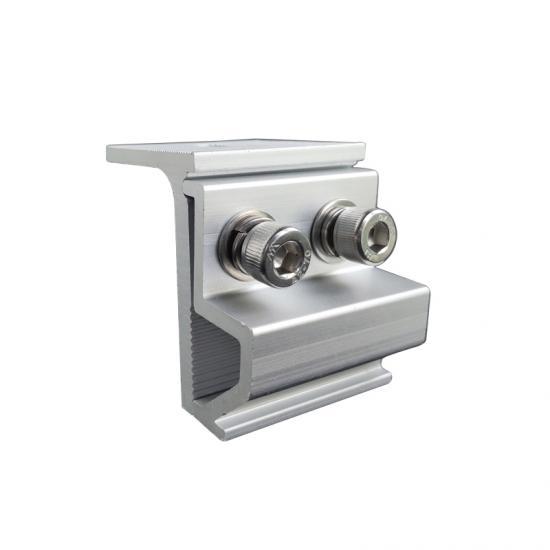

Klip-Lok Metal Roof Solar Clamps

CORIGY SOLAR Klip-Lok Metal Roof Solar Mounting System is made of aluminum alloy, and is applicable for solar power station installed on commercial and residential trapezoidal metal roofs. We offer a variety of clamp types to ensure a perfect connection to different Klip-Lok metal roof sheets. This product is pre-assembled to reduce installation difficulties and time, and save construction costs,it is a solar panel mounting solution that is both economical, easy to use.

Advantages:

1. The Klip Lok clamp are simply attached to metal rooftop and provide a secure non-penetrating fastening solution.

2. Improved grabbing part for metal rooftop solar installation.

3. Fully anodized aluminum and SUS304 fasteners.

4. Can use with bottom mount rail.

5. The Klip Lok clamp would be simply fastened by 2 hex bolts.

Suitable for Klip-Lok Metal Roof

The Klip-Lok roof clamp provides an easy way to mount solar panels on Klip-Lok type roofs without penetrations.The Klip-Lok interface is a small platform that clamps on to the Klip-Lok 'ribs' without drilling through the tin roof. The solar mount clamp can be used with bottom mount rail, which can save installation time and labor cost.

There are more options of rooftop clamps for Klip-Lok metal rooftop solar PV installation.

Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.

In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.

All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.
