Corigy L Foot with Waterproof Flashing for Asphalt Shingle Roof

The L foot mounting structure, also known as an L-foot, is a component used in solar panel installations. It is a bracket that helps secure solar panels to a roof or another mounting surface.


  • Brand:

    CORIGY SOLAR
  • Item NO.:

    MRM-005
  • Payment:

    T/T, L/C, O/A, D/P
  • Product Origin:

    CHINA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    Depends on project time or receipt time
  • Product Detail

Tin Roof Solar Brackets L Foot with  Hanging Bolt

The L foot bracket is attached to the roof using lag screws, bolts, or other appropriate fasteners that are suitable for the roof type and structure. It provides a stable and secure base for the solar panels and helps distribute the weight and load evenly across the mounting surface.

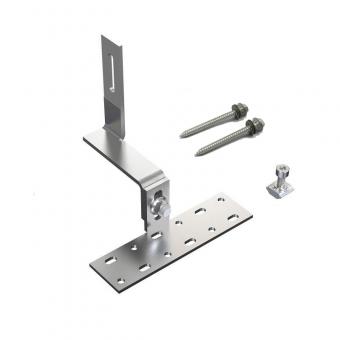

solar power concrete tile roof hook

Product Name

L Foot With Waterproof Flashing

Mount Location

Sloped Roof

Mount Base

Asphalt Shingle Roof

Mount Angle

Parallel to the Rooftop

Wind Load

60m/s

Snow Load

1.6KN/m2

Applicable Solar Panels

Framed Panels & Frameless Panels

Solar Panel Layout

Horizontal Panel Installation & Vertical Panel Installation

Design Standard

AS/NZS 1170 , DIN 1055 ,JIS C8955 2017

Rack Material

Al6005-T5 (Surface Anodic Oxidation

Fastener Material

SUS304/SUS410

Mounting Accessories Material

Al6005-T5 (Surface Anodic Oxidation

Column color

Natural Silver or According to Customer

Warranty Period

10 years

Service Life

25 years

Loading Port

Xiamen Port,China

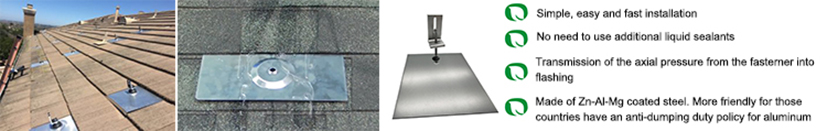

pitched roof solar hook installation


What is the best position for solar panels on a roof?

The best position for solar panels on a roof generally depends on several factors, including the orientation and tilt of the roof, shading issues, local climate conditions, and specific energy goals. Here are a few guidelines to consider:
1. Orientation: The optimal orientation for solar panels is typically facing true south (in the Northern Hemisphere) or true north (in the Southern Hemisphere). East- or west-facing orientations can also work, but they will produce slightly less energy.
2. Tilt: The optimal tilt angle for solar panels is usually the same as the roof's latitude, as this helps maximize sunlight exposure. However, panels installed at a steeper angle (up to around 40 degrees) often generate more electricity during winter months in areas with significant snowfall, as the snow tends to slide off more easily.
3. Shading: It is important to minimize shading on the solar panels, as shadows can significantly reduce the energy output. Therefore, the panels should be placed in an area free from obstructions like trees, nearby buildings, chimneys, or vents that could cast shadows.
4. Climate: Local climate conditions, such as average sunlight hours, cloud cover, and seasonal variations, should be considered to estimate how much solar energy your location receives. This information helps determine the ideal placement and orientation.
5. Roof Space: Assess the available roof space to determine how many panels can be installed and how they can be arranged. It's essential to place the panels efficiently to fit as many as possible while adhering to local regulations and requirements.
6. Roof condition and structural integrity: It's essential to consider the condition and structural integrity of the roof before installing solar panels. A thorough assessment by a professional can determine whether the roof can handle the additional weight of the panels and ensure that it is in good condition.

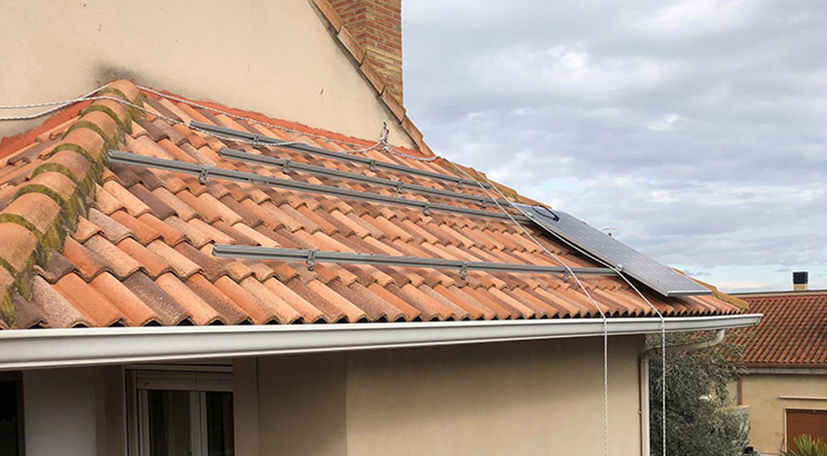

solar panel pitched roof solar mounting kits

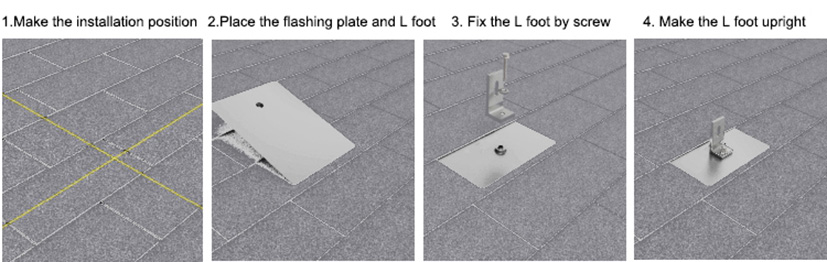

waterproof pitched roof solar racking

l foot solar mounting bracket maufacturer

L foot solar bracket for sale

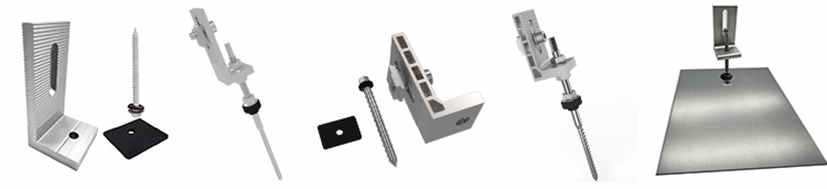

According to different needs, choose the matching solar panel L foot bracket

pitch rooftop solar l foot bracket




Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.
All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.

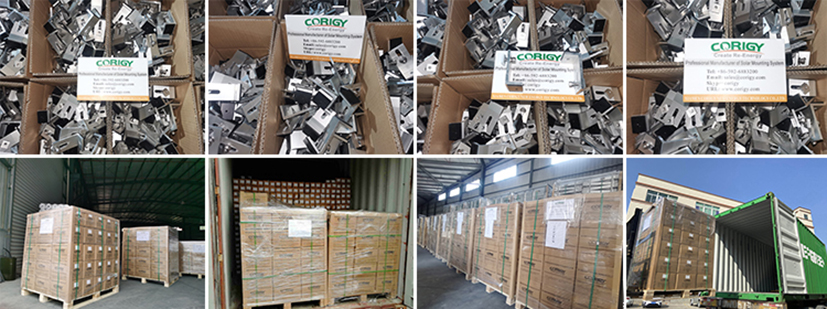

solar panel support seller


          OEM solar bracket factory
