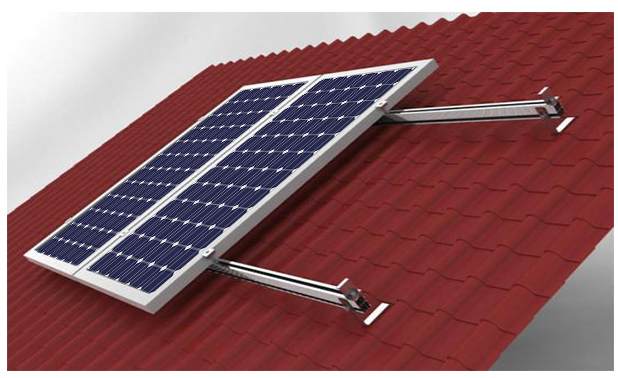

As a result of many years of research and practical application experience, the rapid installation and reliable safety of CORIGY SOLAR's solar racking systems have been widely recognized by the solar power market. A variety of solar mounting solutions can meet different types of tile roofs.
Brand:
CORIGY SOLARItem NO.:
CPR-S SeriesPayment:
T/T, L/C, O/A, D/PProduct Origin:
CHINAShipping Port:
XIAMENLead Time：
Depends on project time or receipt time
Tile Roof Solar Mounting Brackets (CPR-F series)
Product NameStai
Arched ceramic tile roof solar mounting bracket fixture (CPR-C series)
Mount Location
Sloped Roof
Mount Base
Arched ceramic tile roof
Mount Angle
0-15°
Wind Load
60m/s
Snow Load
1.6KN/m2
Applicable Solar Panels
Framed Panels & Frameless Panels
Solar Panel Layout
Horizontal Panel Installation & Vertical Panel Installation
Design Standard
AS/NZS 1170 , DIN 1055 ,JIS C8955 2017
Rack Material
Al6005-T5 (Surface Anodic Oxidation）
Fastener Material
SUS304/SUS410
Mounting Accessories Material
Al6005-T5 (Surface Anodic Oxidation）
Column color
Natural Silver or According to Customer
Warranty Period
10 years
Service Life
25 years
Loading Port
Xiamen Port,China
1. Allow installation at any point on the seam.
2. Can be adjusted even after accessories have been installed.
3. There are many kinds of tile roof bracket fixtures, suitable for various tile roof types
4. The fixture structure is simple and easy to install.
5. High-quality after-sales service to solve your worries.
6. CORIGY SOLAR Solar Kit is fully assembled ready to be installed.

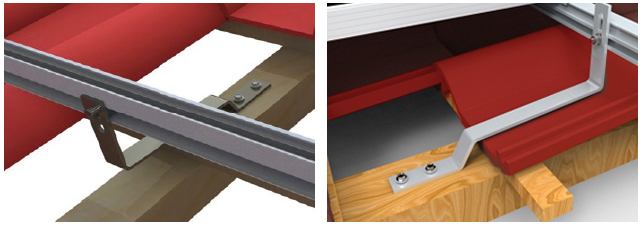

First fix the fixing device on the corresponding tile roof,and then lock the track
|

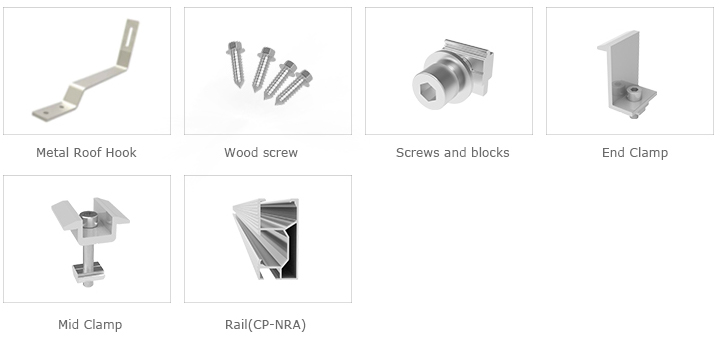

Racking Accessories |
Roof Clamp with Bolts,Washers |
|
Rails |
|
|
Hook up |
|
|
End Clamp with Hex Socket Head Bolts M8,Toggles |
|
|
Mid Clamp with Hex Socket Head Bolts M8,Toggles |

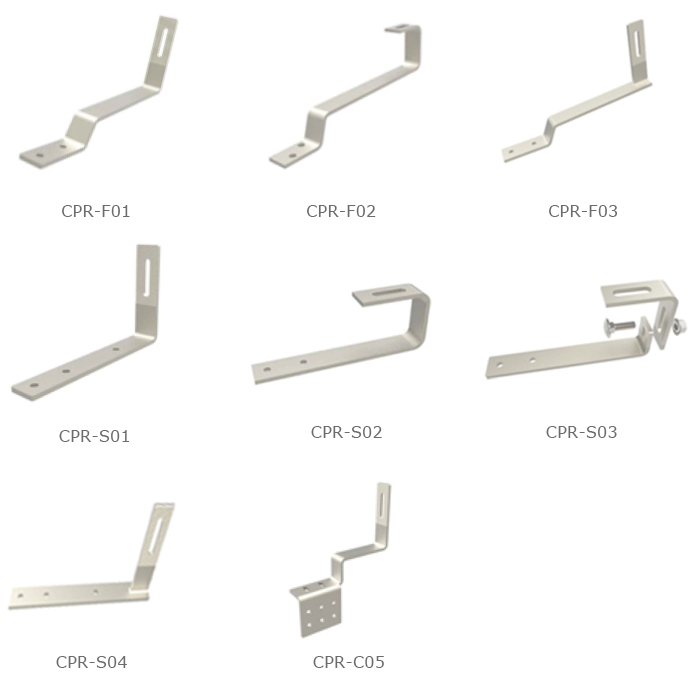

According to different roof shapes, choose the matching photovoltaic tile roof hook.
Solar mounting accessories such as end/mid clamp, cable clip, grounding items， etc.
Flat roof solar mounting systems offer robust support and easy installation for solar panels on flat roofs. These systems ensure maximum energy capture, durability, and cost-efficiency, making them ideal for residential and commercial properties. Corigy flat roof solar panel mounting system, such as ballast mount, east-west ballast mount, etc. Contact us to learn more!
Install solar panel on the metal roof by standing seam, klip-lok, L foot or other clamps.
Corigy Solar Ground Mounting Racking System Structure is widely applied for landfll, open space or sloping terrain, etc, Diferent kinds of material can be offered for any needs, such as galvanized steel, anodized aluminum and ZAM materials.
